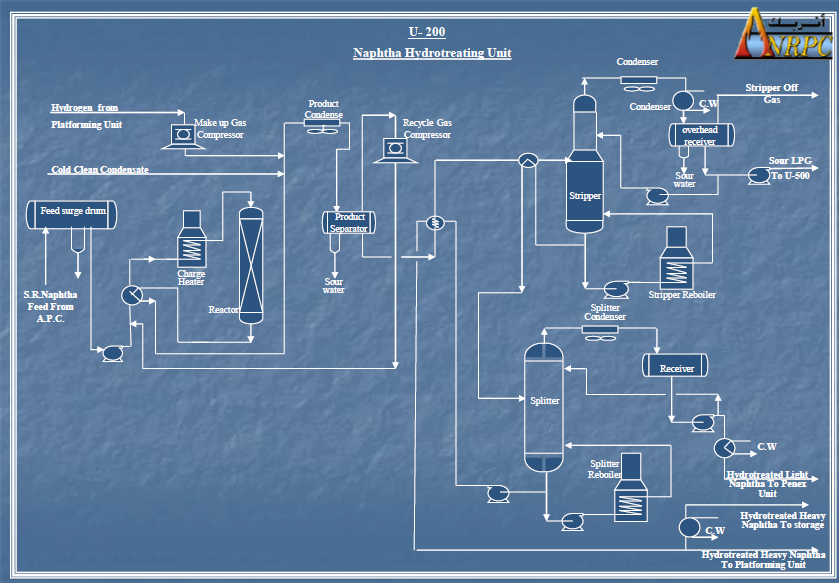

1- Naphtha Hydrotreating and Splitting Units NHT Units
Naptha Hydrotreating Units responsible for decomposing organic sulfur, oxygen and nitrogen compounds that can cause poisoning for the catalysts of Platforming and Isomerization units.
In addition, hydrotreating removes organo-metallic compounds. These processes take place by employing a selected catalyst and hydrogen stream to the straight run naphtha at suitable temperatures and pressures.
The catalyst used is alumina base impregnated with compounds of cobalt or nickel and molybdenum.
There are 3 sections for NHT Units
- In that section all chemical reactions take place.
2- Stripping section
- This section gets rid of sour gases, LPG and water.
- Cleaned naphtha is directed to splitter section.
- Sour gases are sweetened and used in firing heater of New NHT.
- Sour LPG is treated with amine and directed to Alexandria Petrolum Company as a final product.
3- Splitting section
- This section responsible for separating the treated naphtha as light naphtha and heavy naphtha.
- The Light Naphta directed to Isomerization Unit and the Heavy Naphtha directed to Platforming Unit.
- Sweet Heavy Naphtha.
- Sweet Light Naphtha.
- Sour gases.
- Sour LPG.

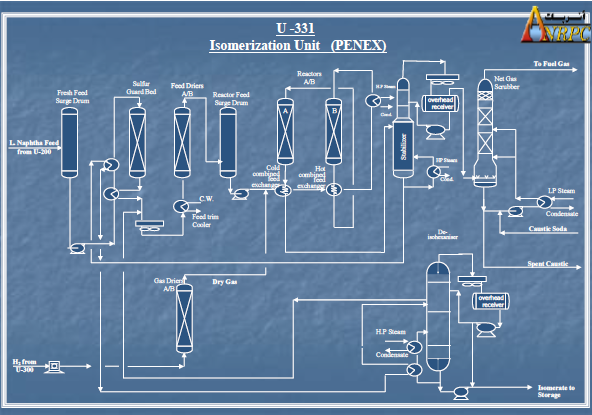

2- Isomerization Unit 'PENEX'
- The unit is designed for catalytic isomerization of light naphtha (mixture from n- pentane & n- hexane) in the presence of hydrogen atmosphere over fixed bed catalyst at operating conditions which promote isomerization reaction and minimize hydrocraking to produce high octane isomerate.
- The major equipments in penex unit are: sulfur guard bed. Liquid and gas dryers, reactors, heaters, reboilers, exchangers, product stabilizer, caustic scrubber and de-isohexanizer (DIH).
- The catalyst type is UOP I-82
- main reactions are :Conversion of n-pentane to iso-pentane and Conversion of n-hexane to its different isomers.
- Feed light naphtha from NHT units about 479000 ton/year.
- Products :Isomerate about 454000 t/yearRONC 88

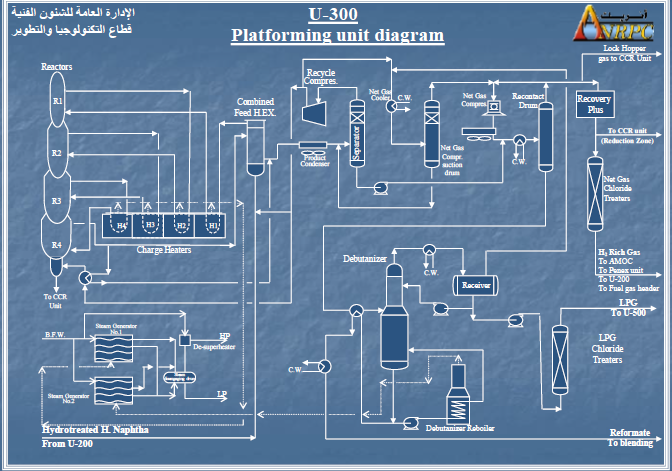

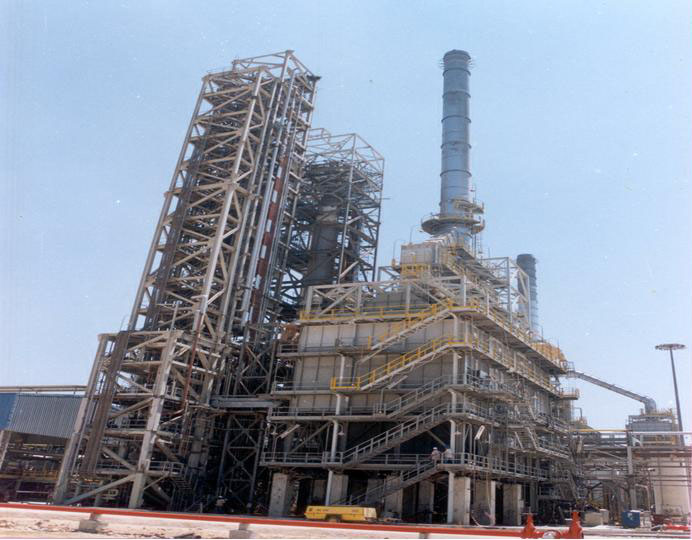

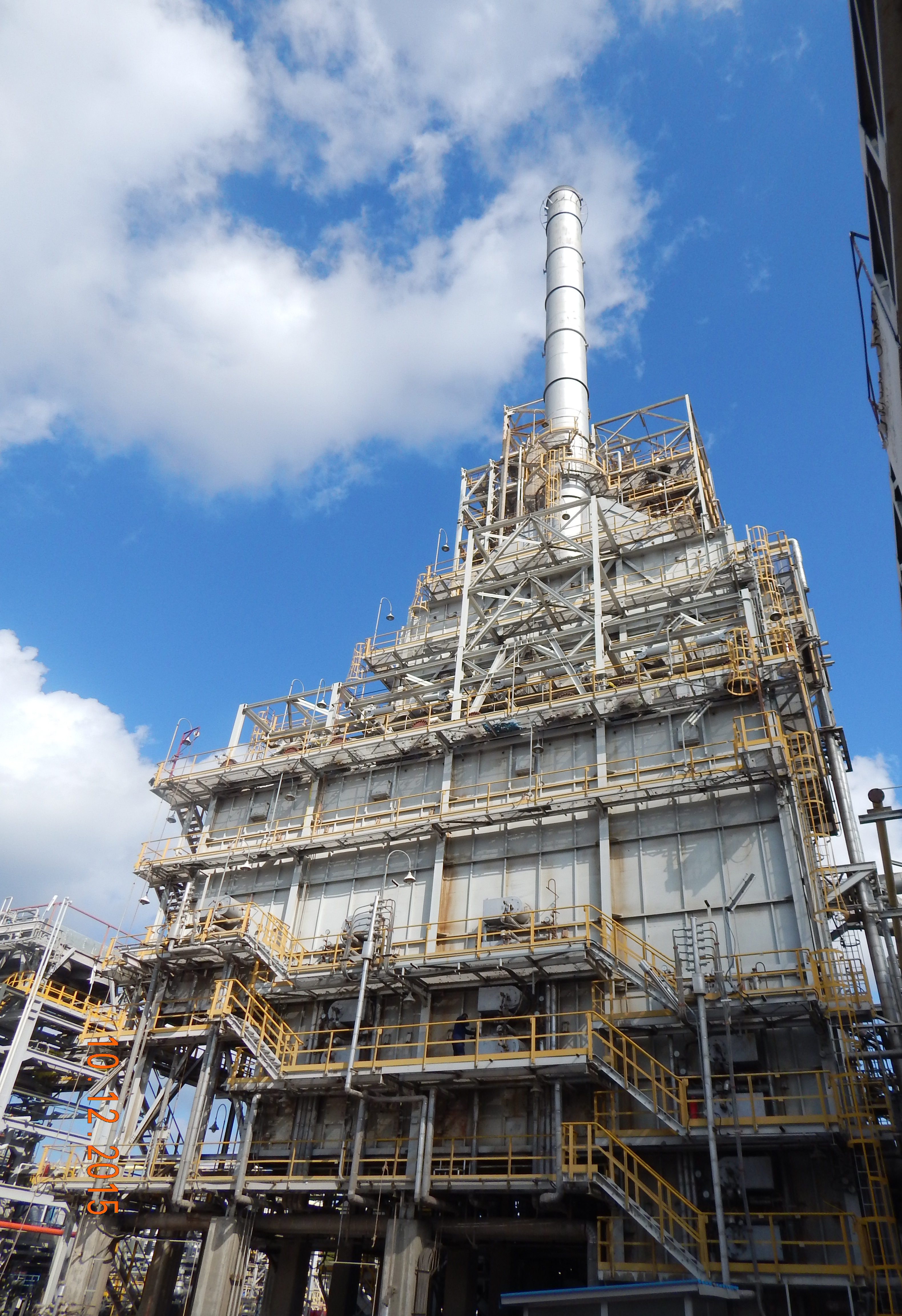

3- Platforming Unit
The main function of platforming processing is the production of high octane number reformate from lower octane number hydrocarbon (heavy naphtha )
with out any chemical additions (TEL ,MTBE ).
- catalytic reforming improves anti-knock properties of gasoline and minimize the coke deposit on the catalyst .
- platforming reaction takes place in presence and hydrogen environment and proper catalyst (40P R -164) .
- the catalyst has two functions acid and metallic function to improve dehydrogenation and dehydro cyclization reaction and minimize hydrocroking reaction.
Unit feed Sweet heavy naphtha from NHT unit (476000 ton/year).
Unit products :
- Reformate the core product of the unit 430000 t/year
- Sweet LPG 12000 ton/year
- Hydrogen 33600 ton/year with purity 97.5% which distributed to the process unit , AMOC, E-LAB,APC and the excess use as fuel gas (the excess hydrogen will used as feed to ammonia complex).
- Reformate RONC 102.
- CCR section
- the catalyst regeneration section consist integrated equipment and connected to the reaction section in platforming unit .
- the principal function & CCR section are :
1 – catalyst circulation
2 – catalyst regeneration
- catalyst regeneration takes place in the following steps :
1 – coke burn
2 – oxychlorination
3 – Catalyst drying and cooling
4 – Reduction
4- Recovery Plus Unit
Recovery plus unit consist & three operation circuite .
1 -process circuite
2 – lube oil circuite
3 – refrigeration circuite
The Purpose of The Unit :
Recovery of hydrocarbons from hydrogen product which leads to
- increase the production of liquid yield.
- increase the rate of production for butane( LPG).
- increase the purity of hydrogen to 97.5%.

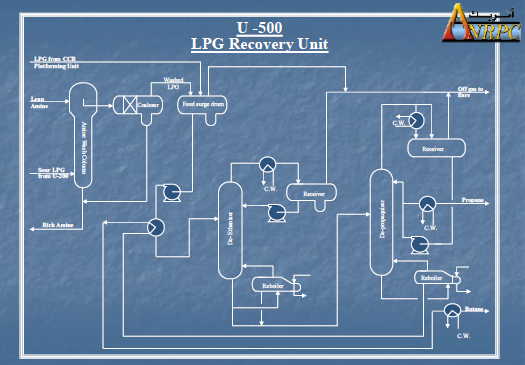

5- LPG Recovery unit
The unit consists of two sections:
- Amine treatment section:
Purpose of this section is responsible to treat LPG from acid gases (H2S) using solution from diethanol amine.
- LPG recovery section:

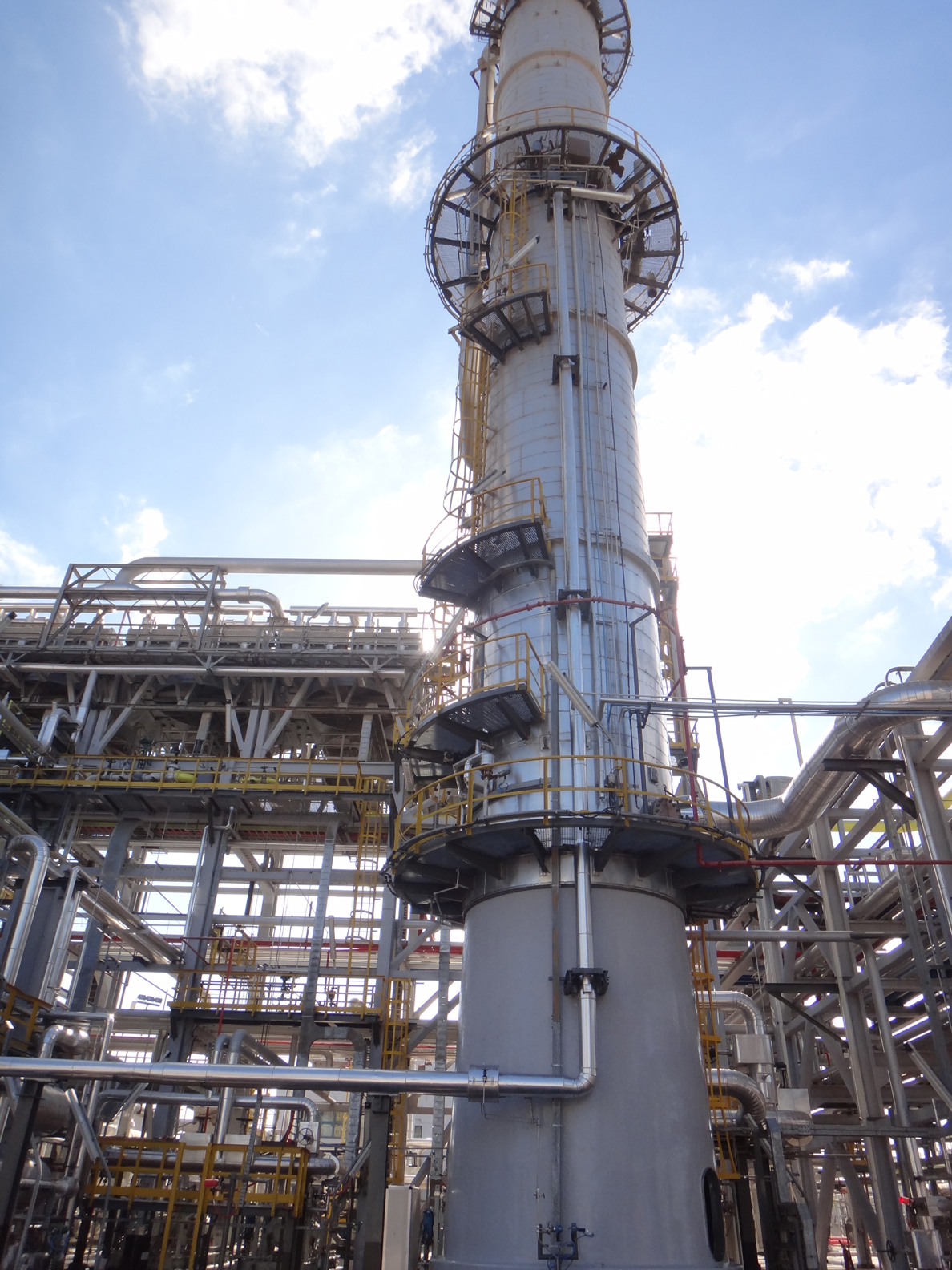

Purpose of this section is process light hydrocarbons (C1-C4) into the required compounds .the section is designed to separate feed stream into off gases (C1&C2) through deethanizer column and propane &butane (C3&C4) through depropanizer.
6- Facilities And Utilities

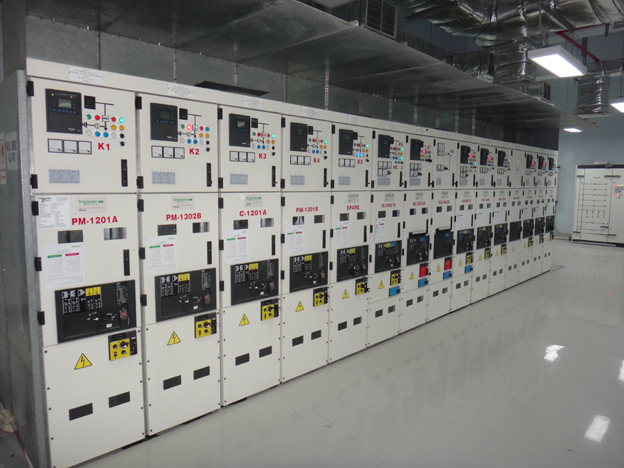

Main Electrical Sub-station
The main transformers station, potential 66/11 k Volts. Transformers design power 2*35 Mega Volt-Amperes in redundant configuration. The operation of transformers and distribution of power are secured using the most resent technologies in electrical isolation (GIS) using the SF6 system
The design capacity of steam generating boiler is 100 Tons/hour to fulfill the needs of both ANRPC and Alexandria Petroleum Company. And also enough for the future projects f the company.

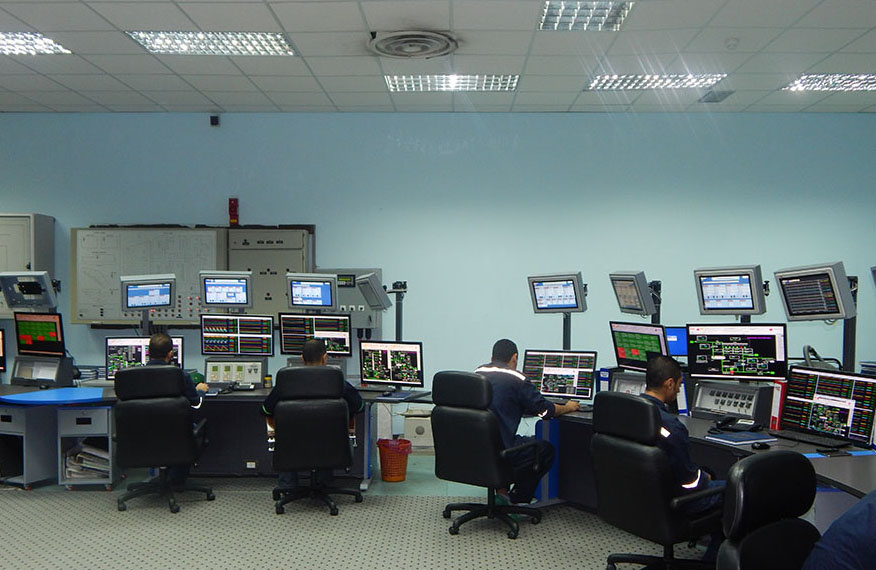

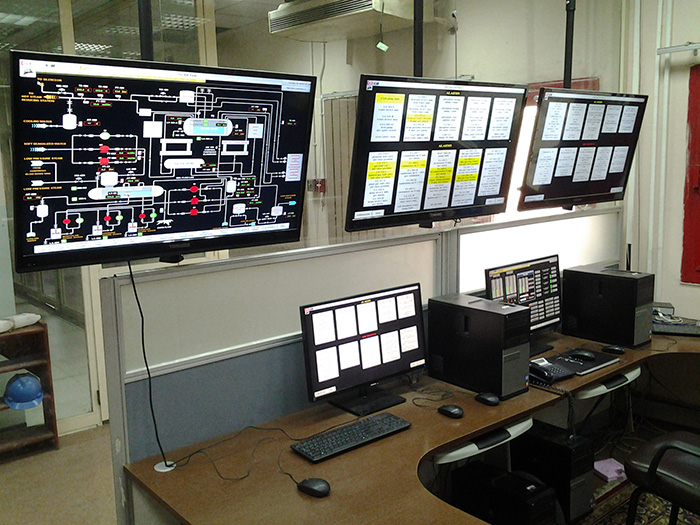

The most advanced systems are used for automatic control, alarms, and emergency shutdown via a digital Distributed Control System (DCS) depends on the newest technology of that field. Also using Advanced Process Control and Optimization system.

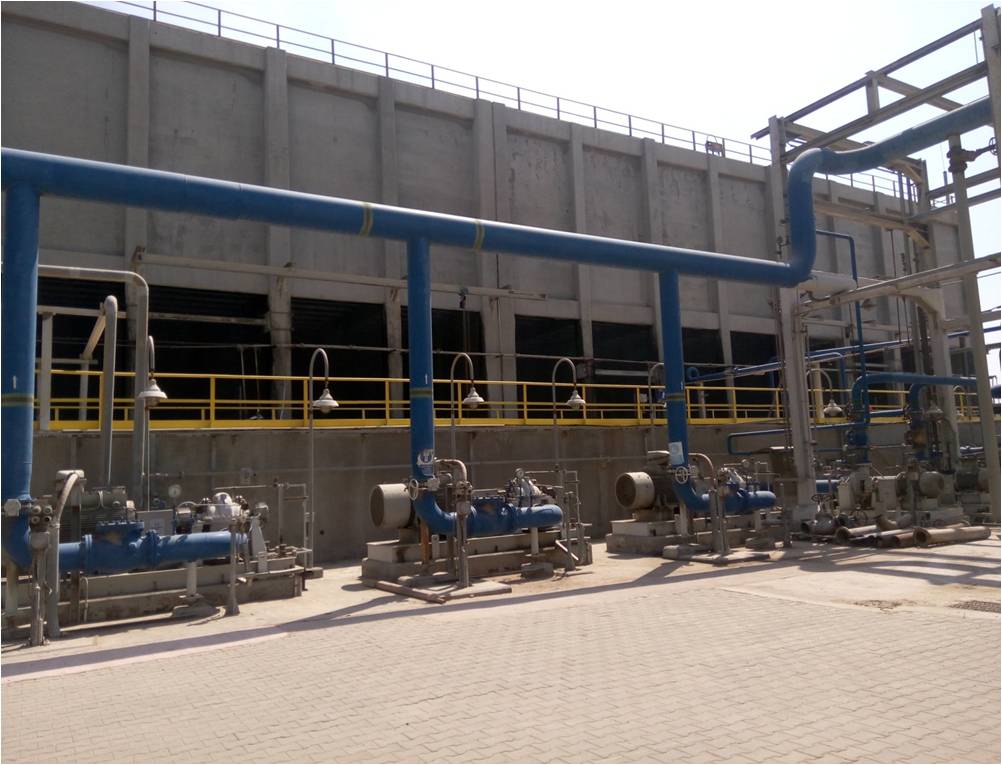

A closed cooling system to cool products and machinery. Depending on reusing the coolant through cooling towers.

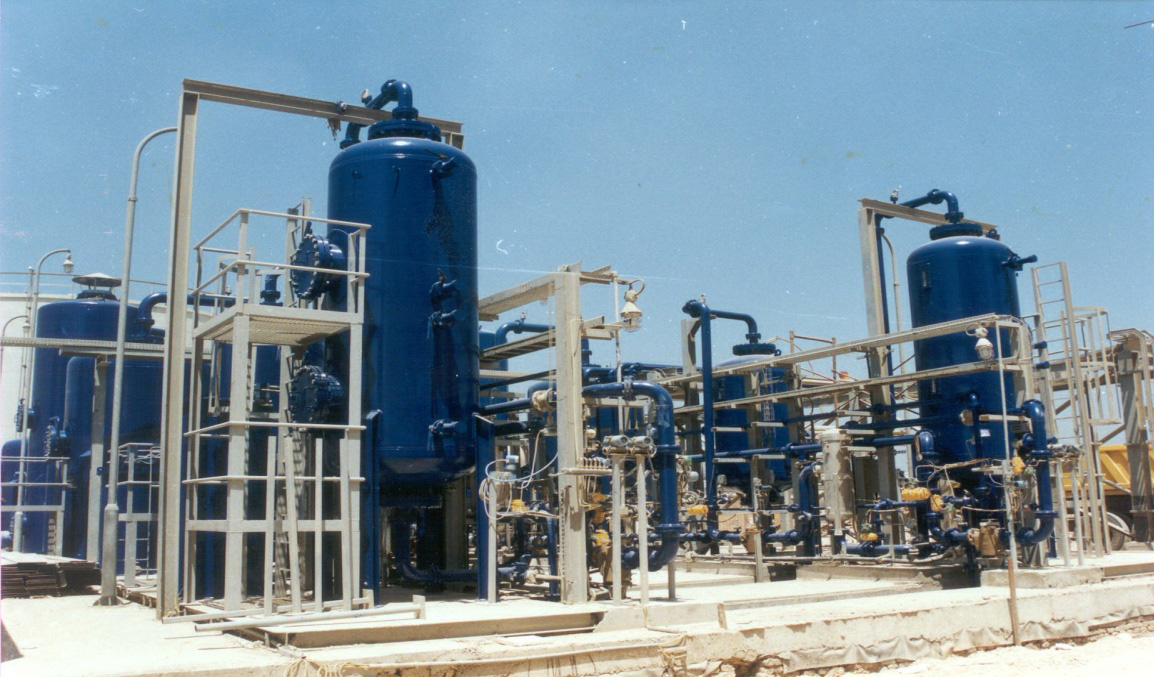

Water Treatment Unit
Water treatment unit with capacity 180 m3/hour
The unit feeds:
120 m3/hour Soft water to the Boiler
60 m3/hour Demineralized water

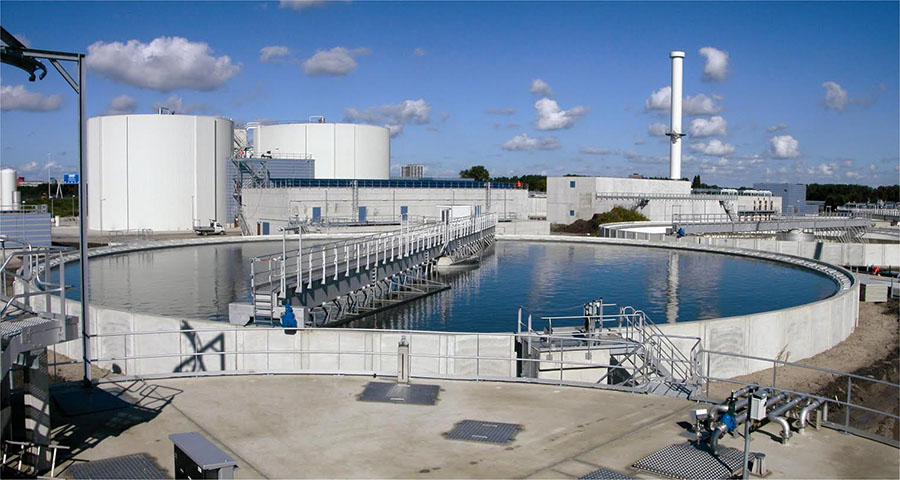

Sewage Treatment Unit
Sewage treatment unit with capacity 50 m3/hour. To produce pure water according to environmental laws to be used in garden irrigation inside the company .
